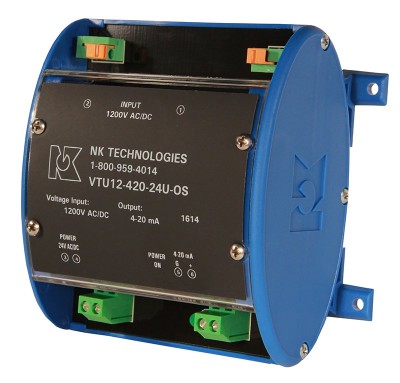

VTU Series AC/DC Voltage Transducer

VTU Voltage Transducer


Agency Listings, Certifications & International Registrations
The VTU series of voltage transducers provide very high accuracy and safety in a panel or DIN rail mounted housing. One sensor design can measure DC or AC circuit voltages to 1200 volts, and produce an analog signal directly proportional to the voltage connected. A very valuable tool to spot issues with power generation (conventional and alternative sources) like brown outs and phase loss. The voltage will be present on the line side of a disconnect even when the breaker or switch is open.

Request a Quote Need Help? Check Distributor Stock

Industry Standard Output Options

  • 4–20 mA, 0-5 VDC and 0-10 VDC
  • Compatible with most automation and control systems
  • Output proportional to RMS voltage

Externally Powered

  • 24 VAC or DC with low power consumption

Simple Conductor Termination

  • Primary circuit uses self-tightening terminals
  • Power supply and output terminals are finger-safe

Panel or DIN Rail Mounting Options

  • If a DIN rail is not available, use the screw mounting option
    to attach to a back panel
  • Power supply is isolated from input and output

UL, CUL Listed and CE Pending

  • Accepted worldwide
