AS3 Current Sensing Relay

AS3 Current Sensing Switch

certifications

Agency Listings, Certifications & International Registrations

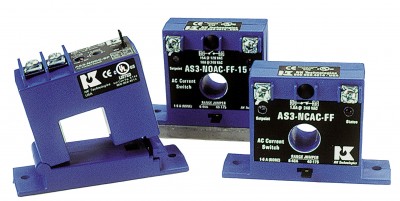

AS3 Series Current Sensing Relay provide the same dependable indication of status offered by the AS1 Series Current Sensing Relay, but with the added benefit of increased setpoint accuracy. A choice of three, jumper-selectable input ranges allows the AS3 current sensing switch to be tailored to an application, providing more precise control through improved setpoint resolution. Self-powering, isolated solid-state outputs, 1–6 A, 6–40 A and 40–200 A input ranges, and a choice of split- or solid-core case are standard.

Request a Quote Need Help? Check Distributor Stock

N.O. OR N.C. SOLID-STATE OUTPUTS

  • 1 A @ 240 VAC, 0.15 A @ 30 VDC
  • 15 A @ 120 VAC (-15 model)
  • 3 A @ 120 VAC output optional, consult factory

SELF-POWERED

  • Reduces installation and operating costs

EASILY ADJUST SETPOINT

  • Speeds startup

SOLID OR SPLIT-CORE CASE

  • Choose the appropriate version for each installation

LED INDICATION

  • Provides quick visual indication of contact status

BUILT-IN MOUNTING FEET

  • Simple, two-screw panel mount or attach with optional DIN-rail brackets
  • Provides the secure installation inspectors require
AS3 Series Model Numbers: AS3-AADC-FF, AS3-CCDC-FF, AS3-NCAC-FF, AS3-NCAC-FF-15, AS3-NCAC-FF-NL, AS3-NCAC-FT, AS3-NCAC-FT-03, AS3-NCAC-SP, AS3-NCDC-FF, AS3-NCDC-SP, AS3-NOAC-FF, AS3-NOAC-FF-15, AS3-NOAC-FF-NL, AS3-NOAC-FT, AS3-NOAC-FT-03, AS3-NOAC-SP, AS3-NODC-FF, AS3-NODC-FF-NL, AS3-NODC-SP
