ATS Current Sensing Switch with Rotary Switch Setpoint

ATS Current Sensing Rotary Switch

product-of-the-year-2012-ul

Agency Listings, Certifications & International Registrations
The ATS Series AC Current Sensor combines a current operated switch and transducer into a single package for use in AC current applications up to 1200 A. The large sensing window provides complete isolation between the primary circuit and the controls. The DIN rail mounting makes installation a breeze, and provides a very secure mount that is resistant to conductor movement.

Request a Quote Need Help? Check Distributor Stock

EASILY ESTABLISHED RELAY ACTUATION POINT

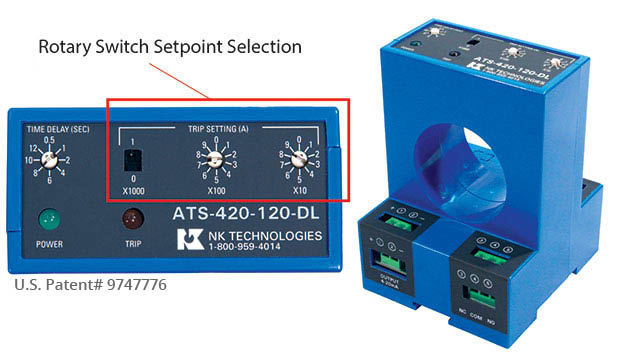

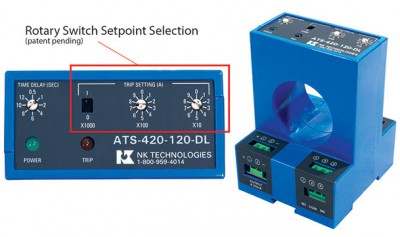

  • Patented rotary switch setpoint selection (patent pending)
  • Trip point indicated on the labeling

ISOLATION

  • Output is magnetically isolated from the input for safety
  • Eliminates insertion losses, no added burden

ANALOG SIGNAL AVAILABLE AT ALL TIMES

  • 4-20mA signal proportional to 0-1200 AC A
  • Reduces components by combining transducer and limit alarm (current switch)
  • Analog signal powered from the sensor; no loop powered required

DIN RAIL MOUNTING*

  • Integral DIN rail mount with spring loaded mounting clips
  • Makes installation a snap

FAIL-SAFE RELAY ACTION

  • Single Pole Double Throw Relay changes state with power to the sensor
  • LED indication if power is removed from the sensor or primary current exceeds the adjustable trip point
  • Field-adjustable time delay from 0.5 to 12 seconds
ATS Rotary Switch Series Model Numbers: ATS-420-SDT-120-DL, ATS-420-SDT-24U-DL
