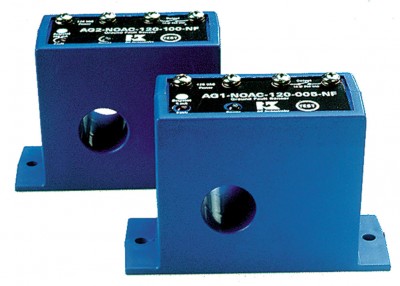

AG Series Ground Fault Detector

AG Series Ground Fault Detector

certifications

Agency Listings, Certifications & International Registrations
AG Series Ground Fault Detector helps protect people, products, and processes from damage by ground fault conditions by monitoring all current-carrying conductors in grounded single- and three-phase delta or wye systems.

Request a Quote Need Help? Check Distributor Stock

OPTIONS TO MATCH APPLICATION NEEDS

  • N.O./N.C. solid-state switch or mechanical relay outputs
  • Normally energized or normally de-energized contacts
  • Noise immunity option for use in EMI/RFI sensitive environments

SETPOINT OPTIONS MAXIMIZE EASE-OF-USE

  • Field-selectable 5 mA, 10 mA or 30 mA setpoints on the AG3 “Tri-set” model makes user adjustments fast, sure and convenient
  • Single factory calibrated setpoints available form 5 mA to 950 mA

COMPATIBLE WITH STANDARD EQUIPMENT

  • Applicable on single- and three-phase systems
  • Ideal for use with shunt trip breakers
  • Magnetically isolated from monitored circuit and control power
  • Uses “zero sum” operating principle to reliably sense imbalance in magnetic fields associated with current leakage to ground
AG Series Model Numbers: AG1-NCR1-120-LA-sss*, AG1-NCR1-120-LA-sss*-N, AG1-NCR1-24U-LA-sss*, AG1-NCR1-24U-LA-sss*-N, AG1-NOR1-120-LA-sss*, AG1-NOR1-120-LA-sss*-N, AG1-NOR1-24U-LA-sss*, AG1-NOR1-24U-LA-sss*-N, AG2-NCR1-120-LA-sss*, AG2-NCR1-120-LA-sss*-N, AG2-NCR1-24U-LA-sss*, AG2-NCR1-24U-LA-sss*-N, AG2-NOR1-120-LA-sss*, AG2-NOR1-120-LA-sss*-N, AG2-NOR1-24U-LA-sss*, AG2-NOR1-24U-LA-sss*-N, AG3-NCR1-120-LA-TR3, AG3-NCR1-120-LA-TR3-N, AG3-NCR1-24U-LA-TR3, AG3-NCR1-24U-LA-TR3-N, AG3-NOR1-120-LA-TR3, AG3-NOR1-120-LA-TR3-N, AG3-NOR1-24U-LA-TR3, AG3-NOR1-24U-LA-TR3-N, AG1-SDT1-120-DEN-sss*, AG1-SDT1-120-DEN-sss*-N, AG1-SDT1-120-ENE-sss*, AG1-SDT1-120-ENE-sss*-N, AG1-SDT1-24U-DEN-sss*, AG1-SDT1-24U-DEN-sss*-N, AG1-SDT1-24U-ENE-sss*, AG1-SDT1-24U-ENE-sss*-N, AG2-SDT1-120-DEN-sss*, AG2-SDT1-120-DEN-sss*-N, AG2-SDT1-120-ENE-sss*, AG2-SDT1-120-ENE-sss*-N, AG2-SDT1-24U-DEN-sss*, AG2-SDT1-24U-DEN-sss*-N, AG2-SDT1-24U-ENE-sss*, AG2-SDT1-24U-ENE-sss*-N, AG3-SDT1-120-DEN-TR3, AG3-SDT1-120-DEN-TR3-N, AG3-SDT1-120-ENE-TR3, AG3-SDT1-120-ENE-TR3-N, AG3-SDT1-24U-DEN-TR3, AG3-SDT1-24U-DEN-TR3-N, AG3-SDT1-24U-ENE-TR3, AG3-SDT1-24U-ENE-TR3-N, AG1-NCAC-120-FS-sss**, AG1-NCAC-120-NF-sss**, AG1-NCAC-24U-FS-sss**, AG1-NCAC-24U-NF-sss**, AG1-NCDC-120-NF-sss**, AG1-NCDC-24U-FS-sss**, AG1-NOAC-120-FS-sss**, AG1-NOAC-120-NF-sss**, AG1-NOAC-24U-FS-sss**, AG1-NOAC-24U-NF-sss**, AG1-NODC-120-FS-sss**, AG1-NODC-120-NF-sss**, AG1-NODC-24U-FS-sss**, AG1-NODC-24U-NF-sss**, AG2-NCAC-120-FS-sss**, AG2-NCAC-120-NF-sss**, AG2-NCAC-24U-FS-sss**, AG2-NCAC-24U-NF-sss**, AG2-NCDC-120-FS-sss**, AG2-NCDC-120-NF-sss** ,AG2-NCDC-24U-FS-sss**, AG2-NCDC-24U-NF-sss**, AG2-NOAC-120-FS-sss**, AG2-NOAC-120-NF-sss**, AG2-NOAC-24U-FS-sss**, AG2-NOAC-24U-NF-sss**, AG2-NODC-120-FS-sss**, AG2-NODC-120-NF-sss**, AG2-NODC-24U-FS-sss**, AG2-NODC-24U-NF-sss**, AG3-NCAC-120-FS-TR3, AG3-NCAC120-NF-TR3, AG3-NCAC-24U-FS-TR3, AG3-NCAC-24U-NF-TR3, AG3-NCDC120-FS-TR3, AG3-NCDC-120-NF-TR3, AG3-NCDC-24U-FS-TR3, AG3-NCDC-24U-NF-TR3, AG3-NOAC-120-FS-TR3, AG3-NOAC-120-NF-TR3, AG3-NOAC-24U-FS-TR3, AG3-NOAC-24U-NF-TR3, AG3-NODC-120-FS-TR3, AG3-NODC-120-NF-TR3, AG3-NODC-24U-FS-TR3, AG3-NODC-24U-NF-TR3
