Max. Wire Bundle O.75 in (19.1 mm) Dia.

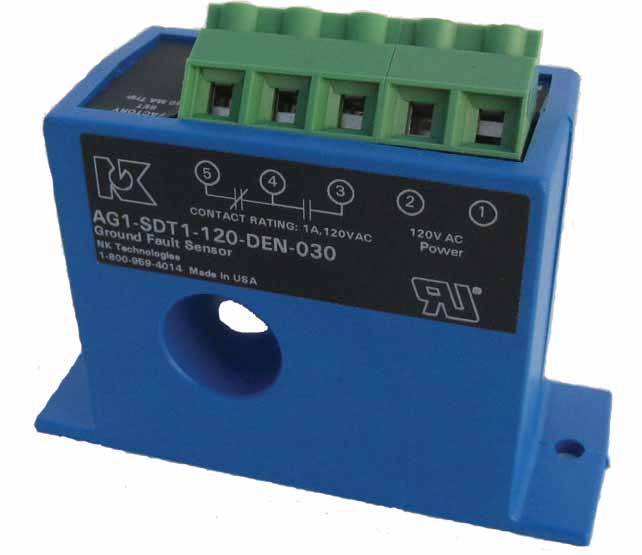

AG Series Ground Fault Relay
AG Series Ground Fault Relay helps protect people, products, and processes from damage by ground fault conditions. AG Series Ground Fault Relays monitor all current-carrying conductors in grounded single- and three-phase delta or wye systems.
OPTIONS TO MATCH APPLICATION NEEDS
- N.O./N.C. solid-state switch or mechanical relay outputs.
- Normally energized or normally de-energized contacts.
- Noise immunity option for use in EMI/RFI sensitive environments.
SETPOINT OPTIONS MAXIMIZE EASE-OF-USE
- Field-selectable 5 mA, 10 mA or 30 mA setpoints on the AG3 “Tri-set” model makes user adjustments fast, sure and convenient.
- Single factory calibrated setpoints available form 5 mA to 950 mA.
COMPATIBLE WITH STANDARD EQUIPMENT
- Applicable on single- and three-phase systems.
- Ideal for use with shunt trip breakers.
- Magnetically isolated from monitored circuit and control power.
- Uses “zero sum” operating principle to reliably sense imbalance in magnetic fields associated with current leakage to ground.
