CT-MS 1 A and 5 A Secondary Current Transformer

Designed & Assembled in the USA

Home » Current Transformers » CT-MS 1 A and 5 A Secondary Current Transformer

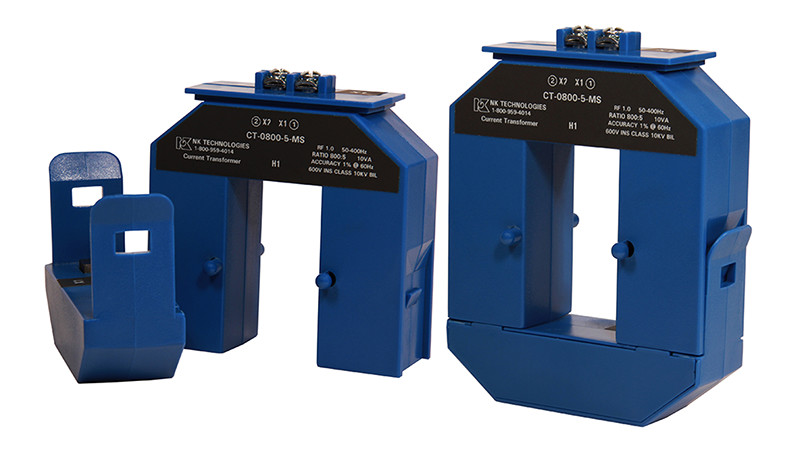

CT-MS 5A Secondary Current Transformer

CT-MS 1 A and 5 A Secondary Current Transformer

The CT-MS 1 A and 5 A Secondary Current Transformer offers a compact, cost-effective means of measuring primary current. These current transformers provide an easy-to-install method to measure AC current, producing a 0–1 A and 0–5 A output proportional to the current flowing through the sensing window. The CT-MS series offers a large sensing window and a split-core design for easy installation.

SPLIT-CORE CASE

  • Split-core case for convenient installation over large wires or bus bars.

OUTPUT

  • 1 A and 5 A secondary is compatible with standard power monitors and panel meters designed for the 1 A to 5 A input.

SENSING WINDOW

  • MS series with large sensing window (2.22” x 1.19”) available to measure current from 0–150 A to 0–800 A.

TERMINALS

  • Plated terminals for reliability.
